Yamaha MT-07 - Owner's Manual > Consumer information

Identification numbers

Record the vehicle identification number, engine serial number, and the model label information in the spaces provided below. These identification numbers are needed when registering the vehicle with the authorities in your area and when ordering spare parts from a Yamaha dealer.




Vehicle identification number

Vehicle identification number

  1. Vehicle identification number

The vehicle identification number is stamped into the steering head pipe.

Record this number in the space provided.


The vehicle identification number is used to identify your motorcycle and may be used to register your motorcycle with the licensing authority in your area.

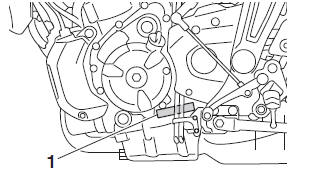

Engine serial number

Engine serial number

  1. Engine serial number

The engine serial number is stamped into the crankcase.

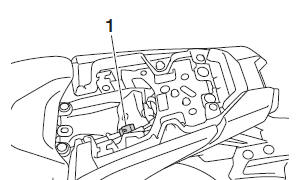

Model label

Model label

  1. Model label

The model label is affixed to the frame under the passenger seat. Record the information on this label in the space provided. This information will be needed when ordering spare parts from a Yamaha dealer.

Diagnostic connector

Diagnostic connector

  1. Diagnostic connector

The diagnostic connector is located as shown.

Vehicle data recording

This model's ECU stores certain vehicle data to assist in the diagnosis of malfunctions and for research and development purposes. This data will be uploaded only when a special Yamaha diagnostic tool is attached to the vehicle, such as when maintenance checks or service procedures are performed.

Although the sensors and recorded data will vary by model, the main data points are:

  • Vehicle status and engine performance data
  • Fuel-injection and emission-related data

Yamaha will not disclose this data to a third party except:

  • With the consent of the vehicle owner
  • Where obligated by law
  • For use by Yamaha in litigation
  • For general Yamaha-conducted research purposes when the data is not related to an individual vehicle nor owner
