Kawasaki Z1000SX - Service manual > Exploded View, Specifications, Special Tools

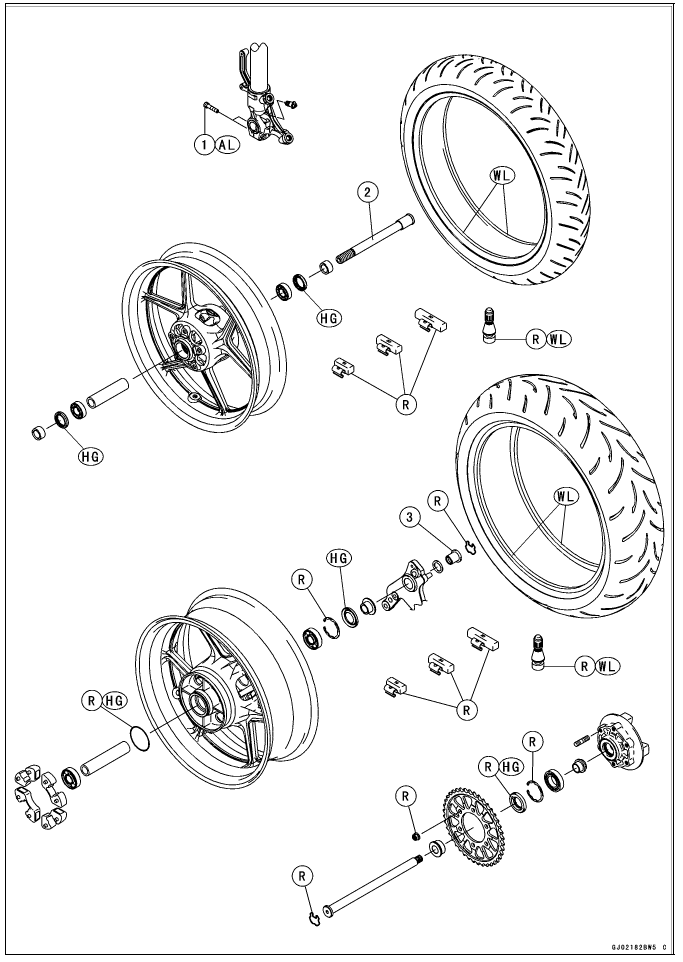

Exploded View

AL: Tighten the two clamp bolts alternately two times to ensure even tightening torque.
HG: Apply high-temperature grease.
R: Replacement Parts
WL: Apply soap and water solution or rubber lubricant.

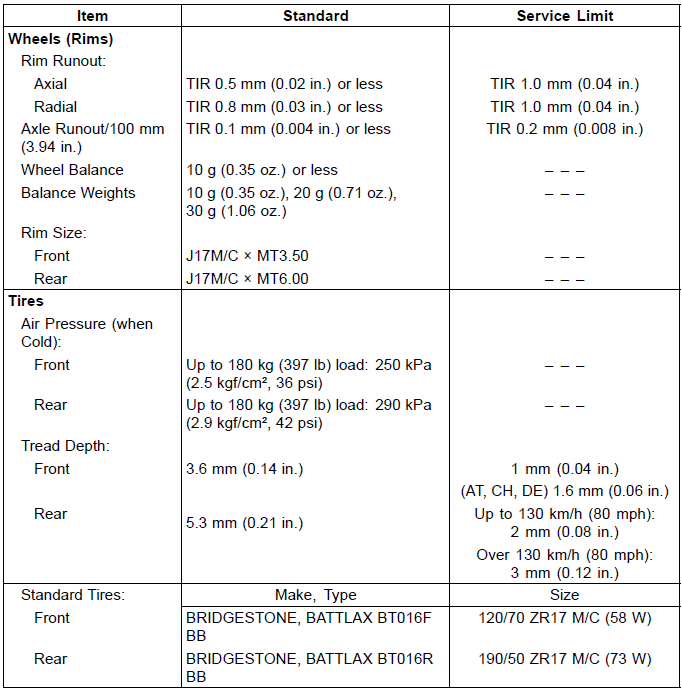

Specifications

WARNING Some replacement tires may adversely affect handling and cause an accident resulting in serious injury or death. To ensure proper handling and stability, use only the recommended standard tires for replacement, inflated to the standard pressure.

Special Tools

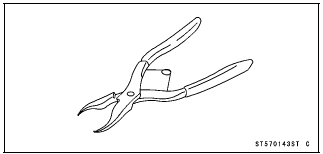

Inside Circlip Pliers: 57001-143

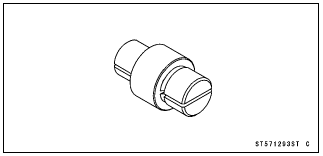

Bearing Remover Head, 20 × 22: 57001-1293

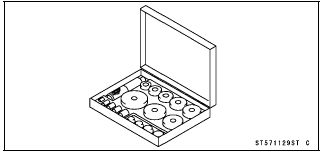

Bearing Driver Set: 57001-1129

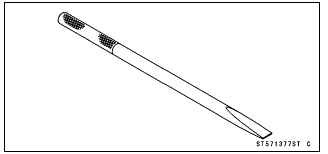

Bearing Remover Shaft, 13: 57001-1377

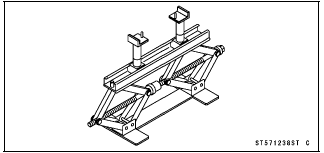

Jack: 57001-1238

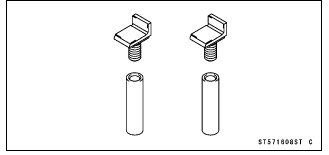

Jack Attachment: 57001-1608

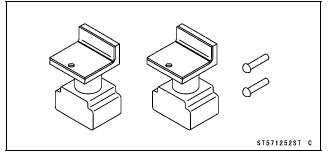

Attachment Jack: 57001-1252
