Kawasaki Z1000SX - Service manual > Exploded View, Specifications, Special Tools

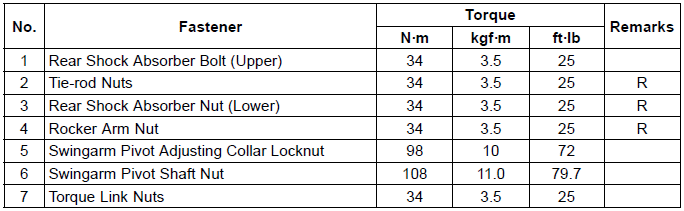

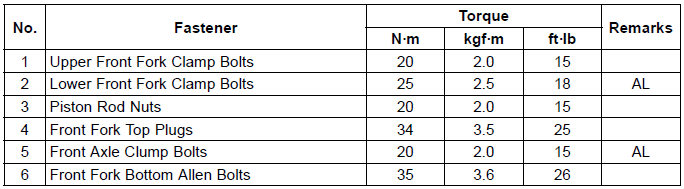

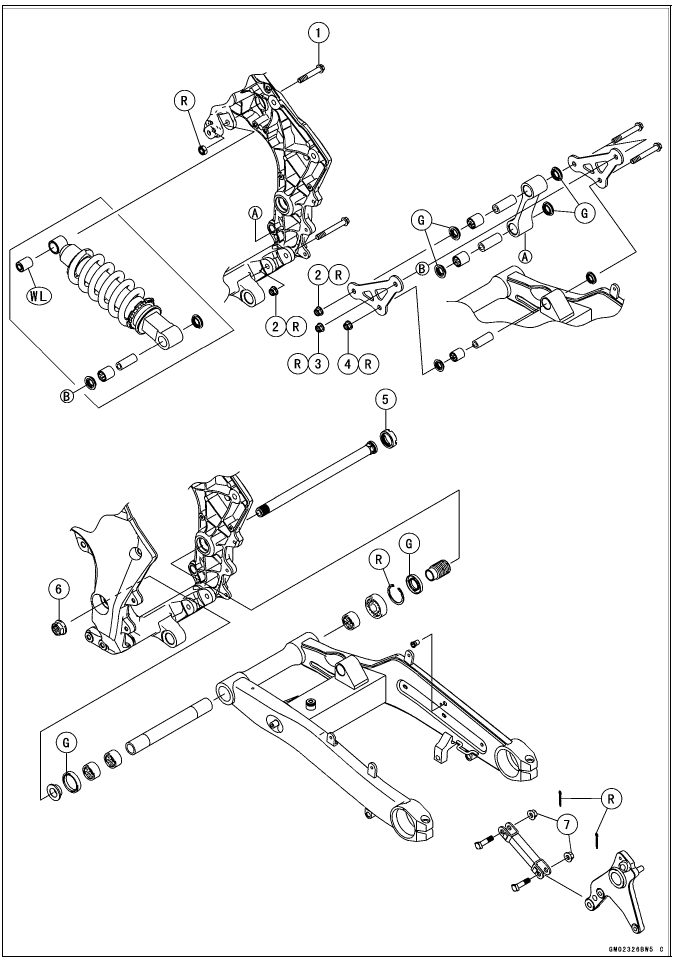

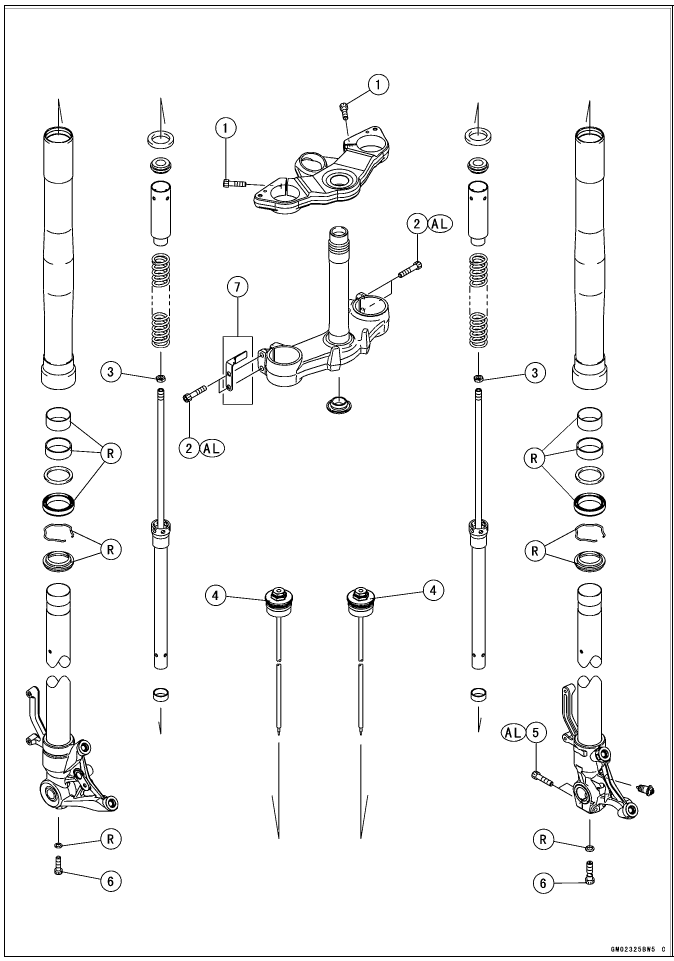

Exploded View

7. ABS Equipped Models
AL: Tighten the two clamp bolts alternately two times to ensure even tightening torque.
R: Replacement Parts

G: Apply grease.
R: Replacement Parts
WL: Apply soap and water solution or rubber lubricant.

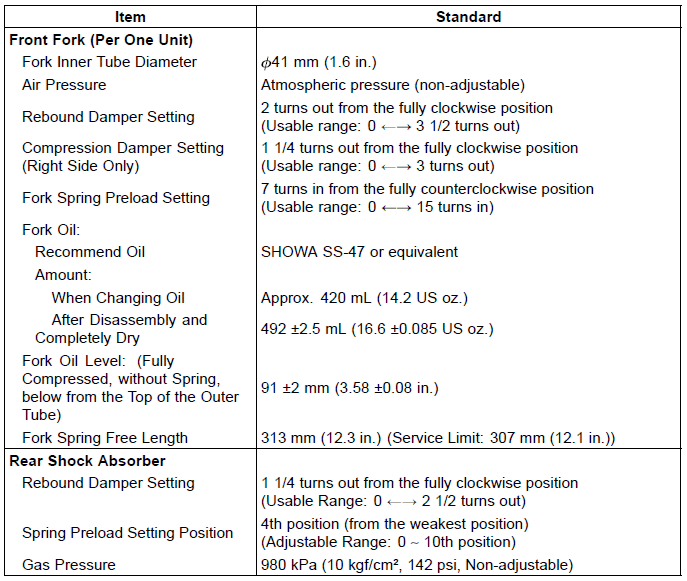

Specifications

Special Tools

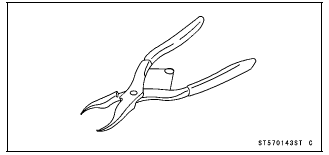

Inside Circlip Pliers: 57001-143

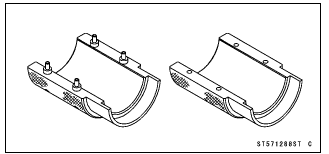

Fork Oil Seal Driver, 41: 57001-1288

Oil Seal & Bearing Remover: 57001-1058

Fork Piston Rod Puller, M12 × 1.25: 57001-1289

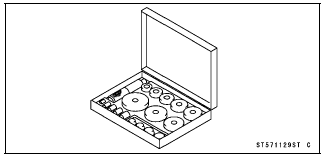

Bearing Driver Set: 57001-1129

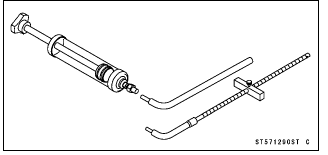

Fork Oil Level Gauge: 57001-1290

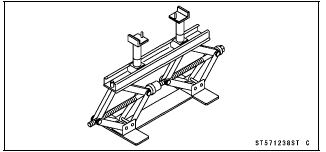

Jack: 57001-1238

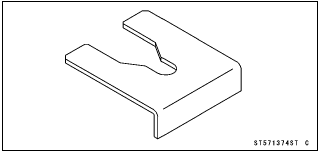

Fork Spring Stopper: 57001-1374

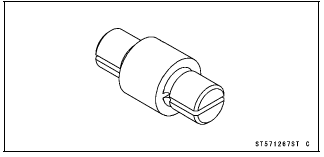

Bearing Remover Head, 15 × 17: 57001-1267

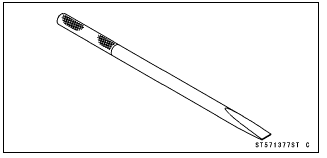

Bearing Remover Shaft, 13: 57001-1377

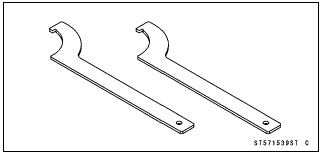

Hook Wrench T=3.2 R37: 57001-1539

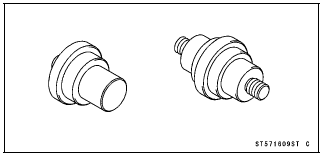

Needle Bearing Driver, 17/ 18: 57001-1609

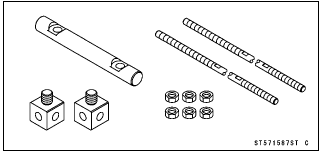

Fork Spring Compressor: 57001-1587

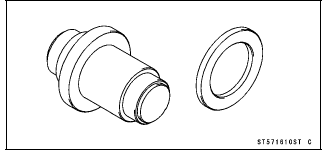

Needle Bearing Driver, 28: 57001-1610

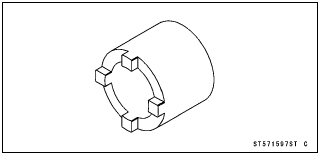

Swingarm Pivot Nut Wrench: 57001-1597

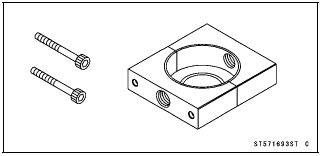

Clamp: 57001-1693

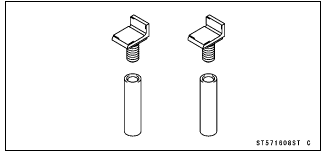

Jack Attachment: 57001-1608

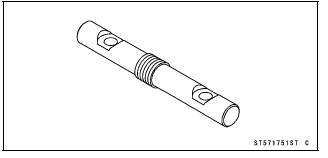

Bar: 57001-1751
