Kawasaki Z1000SX - Service manual > Fuse

30 A Main Fuse Removal

• Remove:
  Starter Cable Terminal Cover (see Starter Relay Inspection)

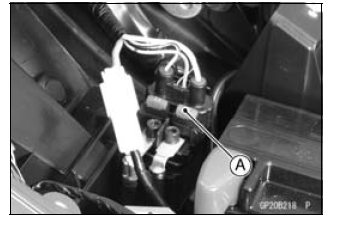

• Pull out the main fuse [A] from the starter relay with a needle nose pliers.

Fuse Box Fuse Removal

• Remove:
  Front Seat (see Front Seat Removal in the Frame chapter)

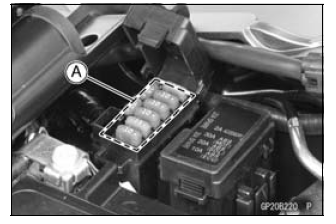

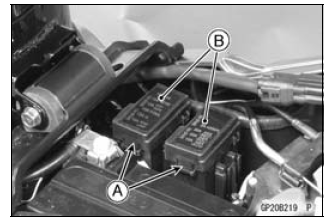

• Unlock the hooks [A] to lift up the lids [B].

• Pull the fuses [A] straight out of the fuse box with needle nose pliers.

15 A FI Fuse Removal

• Remove:
  Starter Cable Terminal Cover (see Starter Relay Inspection)

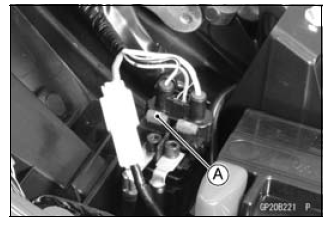

• Pull out the fuse [A].

Fuse Installation

• If a fuse fails during operation, inspect the electrical system to determine the cause, and then replace it with a new fuse of proper amperage.
• Install the fuse box fuses on the original position as specified on the lid.

Fuse Inspection

• Remove the fuse.
• Inspect the fuse element.

  If it is blown out, replace the fuse. Before replacing a blown fuse, always check the amperage in the affected circuit. If the amperage is equal to or greater than the fuse rating, check the wiring and related components for a short circuit.

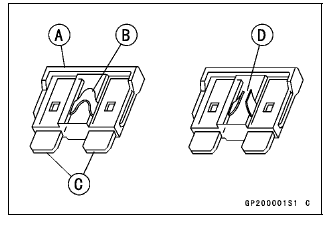

  Housing [A]
  Fuse Element [B]
  Terminals [C]
  Blown Element [D]

NOTICE When replacing a fuse, be sure the new fuse matches the specified fuse rating for that circuit.

Installation of a fuse with a higher rating may cause damage to wiring and components.
