The gauges, indicators and displays on your scooter keep you informed, alert you to possible problems, and make your riding safer and more enjoyable. Refer to the gauges, indicators and displays frequently. Their functions are described on the following pages.

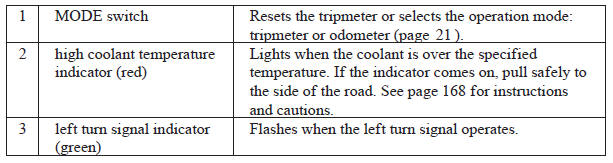

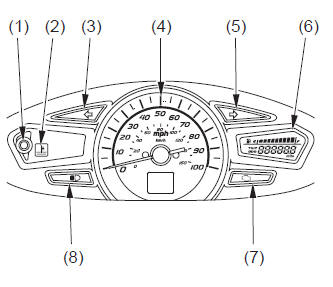

1. MODE switch
2. high coolant temperature indicator
3. left turn signal indicator

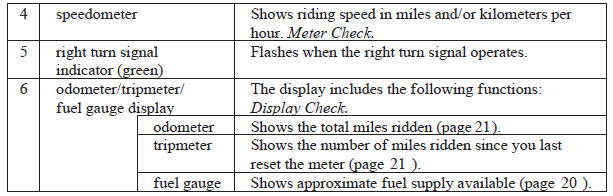

4. speedometer
5. right turn signal indicator
6. odometer/tripmeter/fuel gauge display

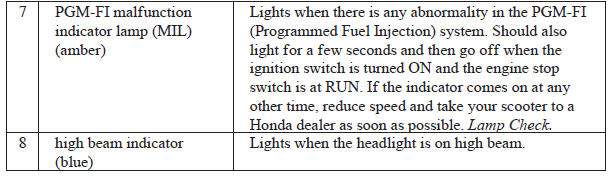

7. PGM-FI malfunction indicator lamp (MIL)
8. high beam indicator

Lamp Check

The PGM-FI malfunction indicator lamp lights for a few seconds and then goes off when you turn the ignition switch ON.

When applicable, the high beam indicator comes on when you turn the ignition switch ON and remains on until you select the low beam.

If this indicator does not come on when it should, have your Honda dealer check for problems.

The indicator is identified in the table.

Meter Check

The speedometer needle will swing to the maximum scale on the dial once when you turn the ignition switch ON.

The meter is identified in the table.

If the speedometer needle does not swing to the maximum scale on the dial when it should, have your Honda dealer check for problems.

Display Check

When the ignition switch is turned ON, the odometer/tripmeter/fuel gauge display (1) will temporarily show all the modes and digital segments so you can make sure the liquid crystal display is functioning properly.

The display is identified in the table.

If any part of these display does not come on when it should, have your Honda dealer check for problems.

1. odometer/tripmeter/fuel gauge display

Odometer/Tripmeter/Fuel Gauge Display

The odometer/tripmeter/fuel gauge display (1) includes the following functions:

fuel gauge
odometer
tripmeter

1. odometer/tripmeter/fuel gauge display
2. fuel gauge
3. odometer
4. tripmeter
5. MODE switch

Fuel Gauge

The fuel gauge liquid crystal display (1) shows the approximate fuel supply available in a graduated display. When segment F (2) goes on, the fuel tank capacity is:

1.64 US gal (6.2 )

When there is only one segment (3) left, fuel will be low and you should refuel as soon as possible.

The amount of fuel left in the tank with the vehicle set upright is approximately:

0.40 US gal (1.5 )

This segment flashes when the fuel decreases further.

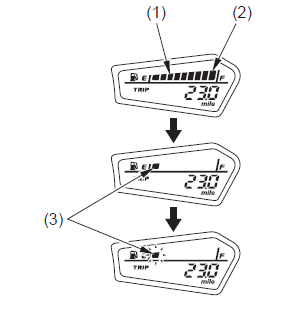

1. fuel gauge
2. segment F
3. segment E

Odometer/Tripmeter

The odometer (1) shows the total miles ridden.

The tripmeter (2) shows number of miles ridden since you last reset the meter.

To select the odometer or tripmeter, press the MODE switch (3).

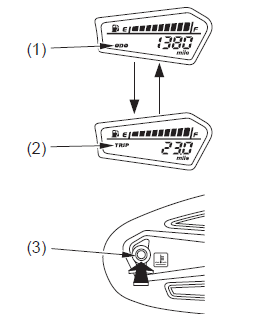

1. odometer
2. tripmeter
3. MODE switch

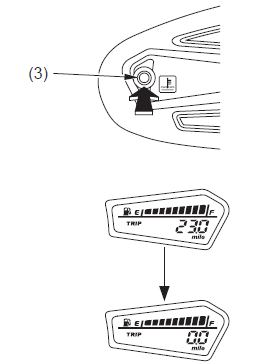

To reset the tripmeter, press and hold the MODE switch (3) for more than 2 seconds when the display is in the tripmeter.

3. MODE switch
