BMW R 1250 GS GSA - Rider's Manual > General view

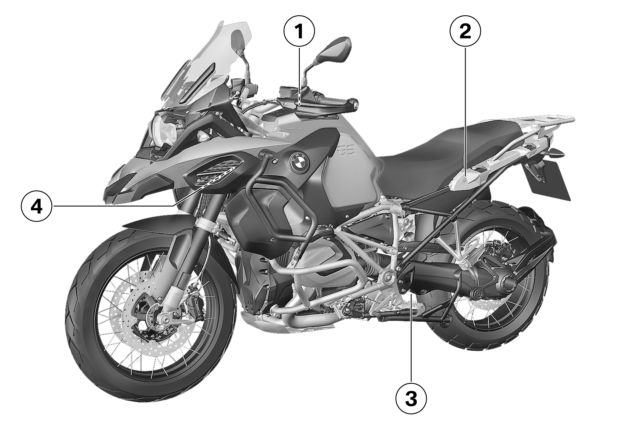

General view, left side

1. Fuel filler opening
2. Seat lock
3. Adjuster for rear damping (at the bottom on the spring strut)
4. Tire pressure table (behind the side trim panel)

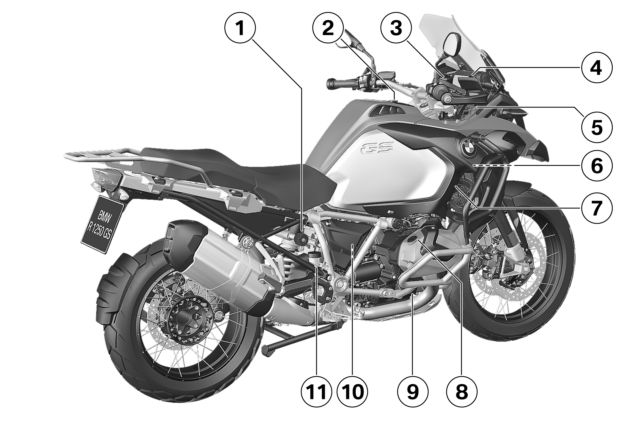

General view, right side

1. Adjuster for spring preload, rear
2. Air filter (under the center trim panel)
3. Brake-fluid reservoir, front
4. Height adjustment of the windshield
5. Onboard power socket
6. Vehicle identification number (on the steering-head bearing)
   Type plate (on the steering-head bearing)
7. Coolant level indicator
   Coolant tank
8. Oil filler opening
9. Engine oil indicator
10. Behind the side trim panel:
    Battery
    Remote positive terminal
    Data link connector
11. Brake-fluid reservoir, rear

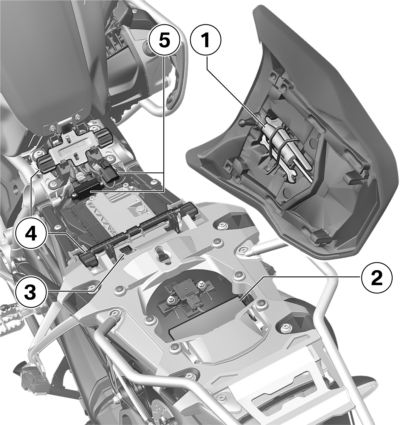

Underneath the seat

1. Standard tool kit
2. Rider's Manual (US Model)
3. Load capacity table
4. Adjustment of driver's seat height
5. Fuses
