Harley-Davidson Sportster XL1200X Forty-Eight - Owner's Manual > Identification

Vehicle Identification Number (VIN)

General

See Typical Harley-Davidson VIN: 2016 Sportster Models. A unique 17-digit serial or Vehicle Identification Number (VIN) is assigned to each motorcycle. Refer to Harley-Davidson VIN Breakdown: 2016 Sportster Models.

Location

See VIN Locations. The full 17-digit VIN is stamped on the right side of the frame near the steering head. In some destinations, a printed VIN label is also attached on the front downtube.

Abbreviated VIN

An abbreviated VIN showing the vehicle model, engine type, model year, and sequential number is stamped on the left side of the crankcase between the engine cylinders.

NOTE: Always give the full 17-digit Vehicle Identification Number when ordering parts or making any inquiry about your motorcycle.

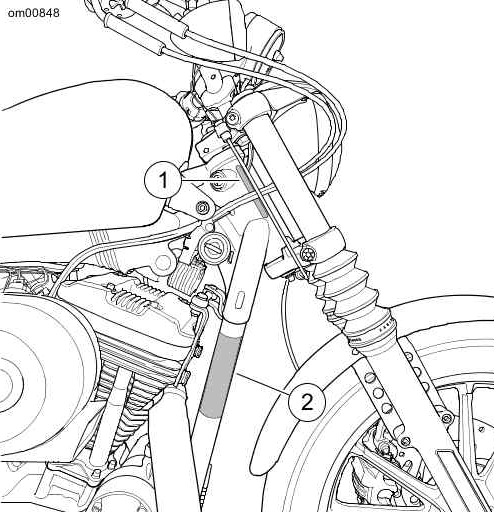

VIN Locations

1. Stamped VIN
2. VIN label

Typical Harley-Davidson VIN: 2016 Sportster Models

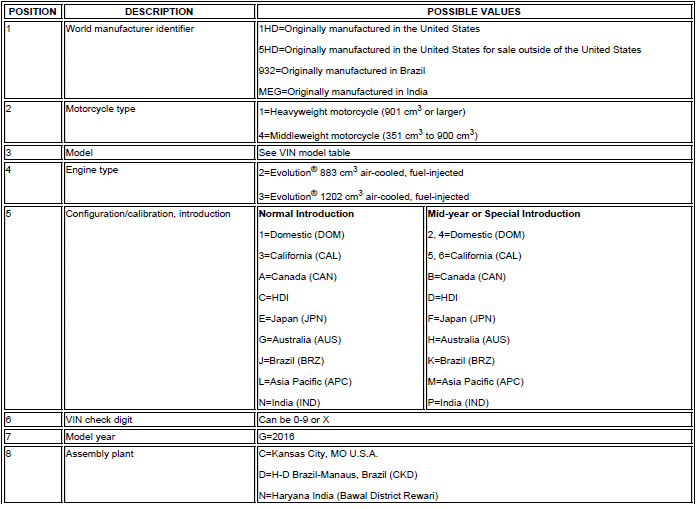

Harley-Davidson VIN Breakdown: 2016 Sportster Models

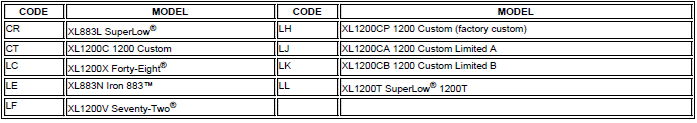

VIN Model Codes: 2016 Sportster Models

Specifications

NOTE: Specifications in this publication may not match those of official certification in some markets due to timing of publication printing, variance in testing methods, and/or vehicle differences. Customers seeking officially recognized regulatory specifications for their vehicle should refer to certification documents and/or contact their respective dealer or distributor.

Transmission

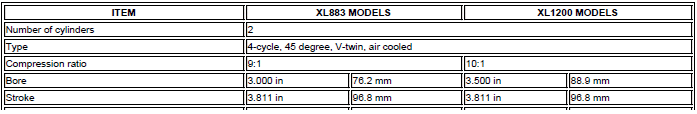

Engine

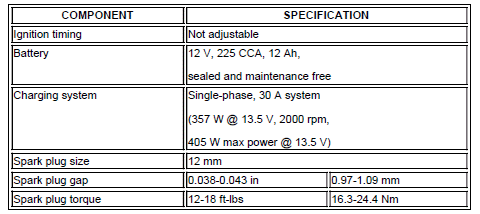

Electrical

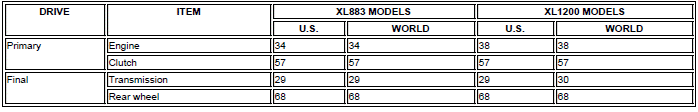

Sprocket Teeth

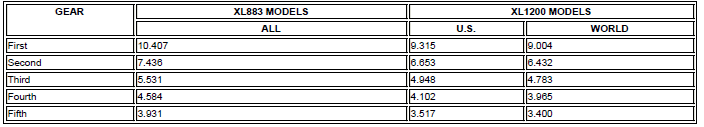

Overall Drive Ratios

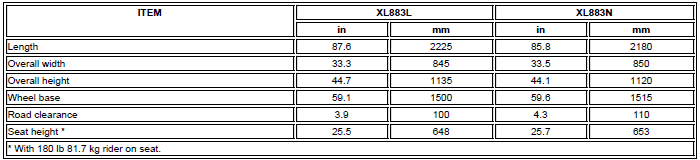

Dimensions: XL883 Models

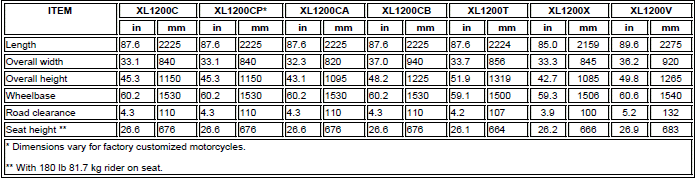

Dimensions: XL1200 Models

Do not exceed the motorcycle's Gross Vehicle Weight Rating (GVWR) or Gross Axle Weight Rating (GAWR). Exceeding these weight ratings can lead to component failure and adversely affect stability, handling and performance, which could result in death or serious injury.

• GVWR is the sum of the weight of the motorcycle, accessories and the maximum weight of the rider, passenger and cargo that can be safely carried.
• GAWR is the maximum amount of weight that can be safely carried on each axle.
• GVWR and GAWR are shown on the information plate, on the frame downtube.

NOTE: The maximum additional weight allowed equals the Gross Vehicle Weight Rating (GVWR) minus the running weight. For example, a motorcycle with GVWR of 1200 lb 544 kg having a running weight of 800 lb 363 kg , would allow a maximum of an extra 400 lb 181 kg combined weight of the rider, passenger, riding gear, cargo and installed accessories.

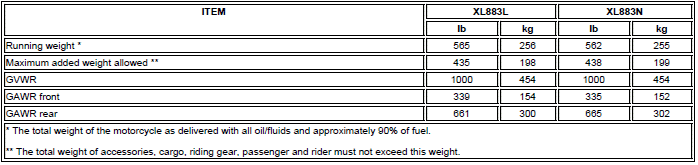

Weights: XL883 Models

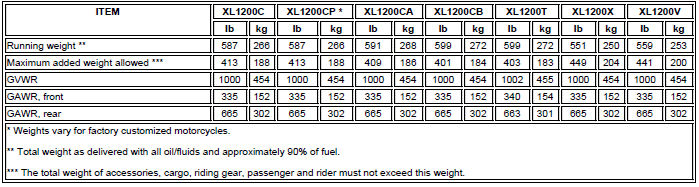

Weights: XL1200 Models

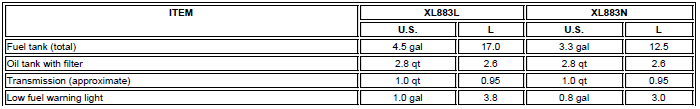

Capacities: XL883 Models

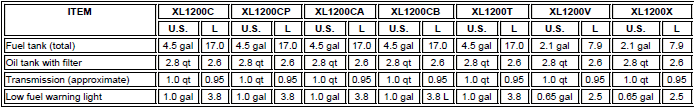

Capacities: XL1200 Models

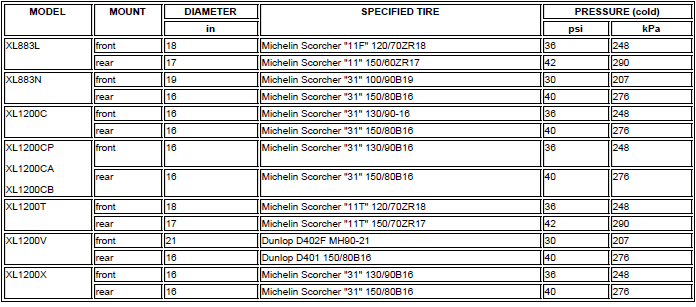

Specified Tires
