Kawasaki Z1000SX - Service manual > Throttle Body Assy Holder

Engine Top End / Throttle Body Assy Holder

Throttle Body Assy Holder Removal

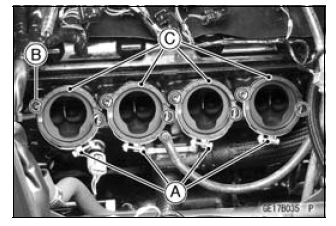

  • Remove:
    Throttle Body Assy (see Throttle Body Assy Removal in the Fuel System (DFI) chapter)
    Clamps [A]
    Bolts [B]
    Throttle Body Assy Holders [C]

Throttle Body Assy Holder

Throttle Body Assy Holder Installation

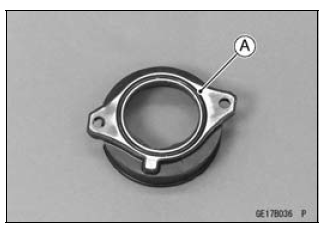

  • Replace the O-rings [A] with new ones.
  • Apply grease to the O-rings, and install them.
  • Apply a non-parmanent locking agent to the throttle body assy holder bolts.
  • Tighten:
    Torque - Throttle Body Assy Holder Bolts: 12 N*m (1.2 kgf*m, 106 in*lb)

Throttle Body Assy Holder

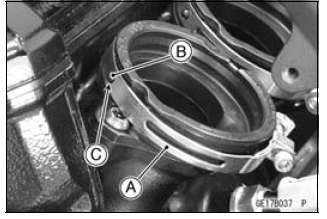

  • Install the clamps [A] so that their projections [B] fit on the holes [C] of the holders.

Throttle Body Assy Holder

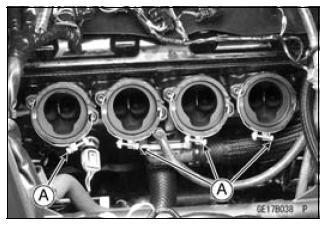

  • Be sure that the clamp bolt heads [A] face as shown in the figure.

Throttle Body Assy Holder
