Kawasaki Z1000SX - Service manual > Exploded View, Specifications, Special Tools

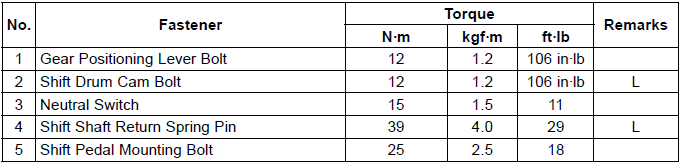

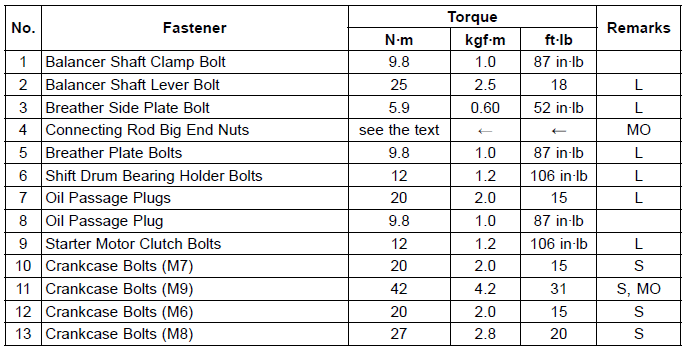

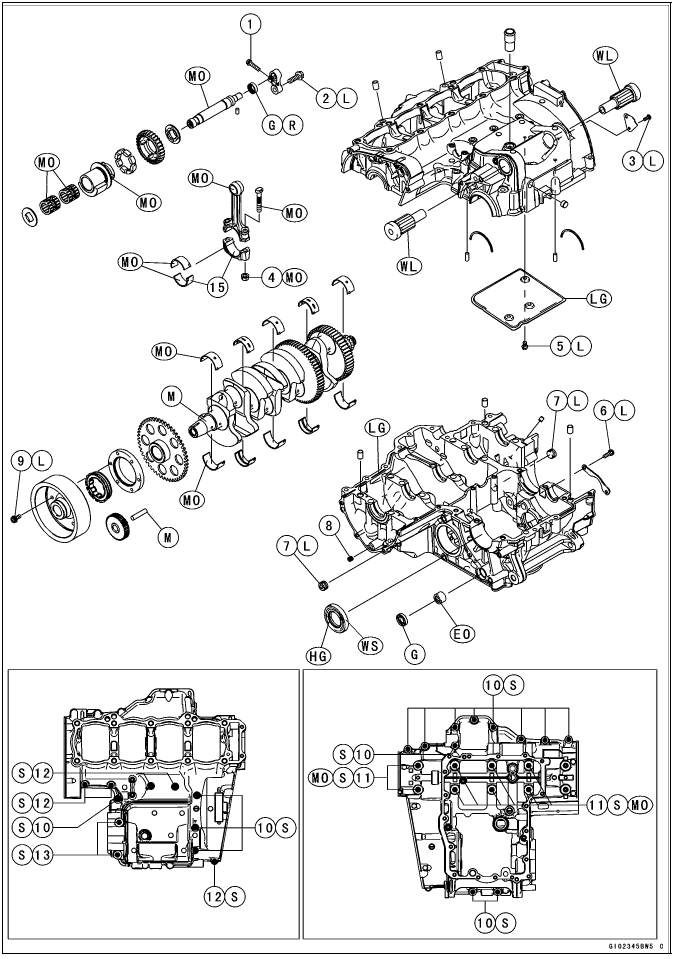

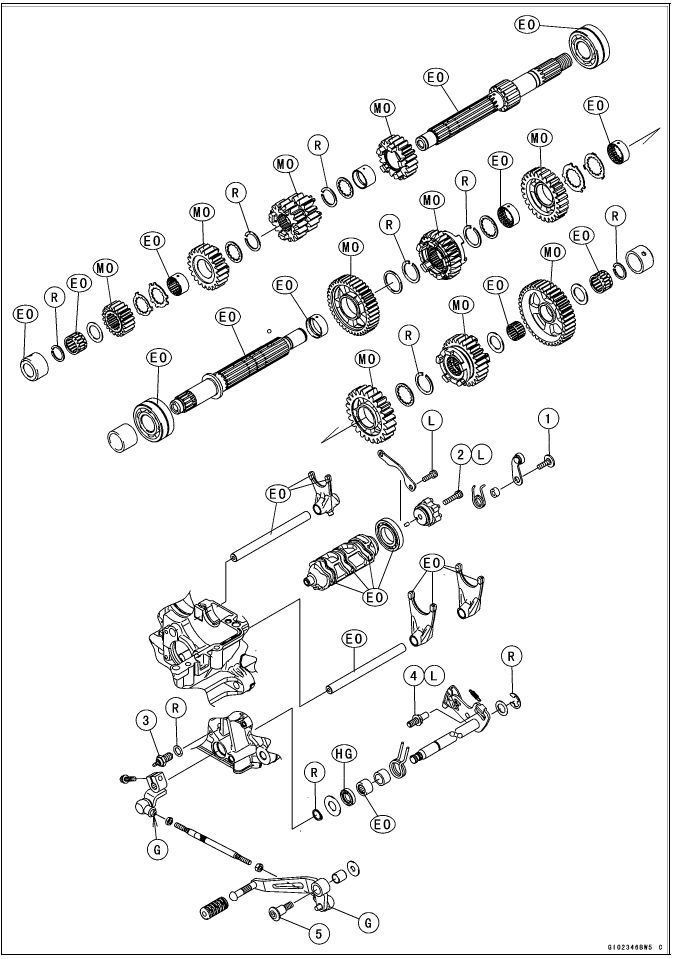

Exploded View
15. Do not apply any grease or oil.
EO: Apply engine oil.
G: Apply grease.
HG: Apply high-temperature grease.
L: Apply a non-permanent locking agent.
LG: Apply liquid gasket.
M: Apply molybdenum disulfide grease.
MO: Apply molybdenum disulfide oil solution.
(mixture of the engine oil and molybdenum disulfide grease in a weight ratio
10:1)
R: Replacement Parts
S: Follow the specified tightening sequence.
WL: Apply soap and water solution or rubber lubricant.
WS: Apply water-soluble lubricant (ThreeBond:TB2720C).
EO: Apply engine oil.
G: Apply grease.
HG: Apply high-temperature grease.
MO: Apply molybdenum disulfide oil.
(mixture of the engine oil and molybdenum disulfide grease in a weight ratio
10:1)
L: Apply a non-permanent locking agent.
R: Replacement Parts

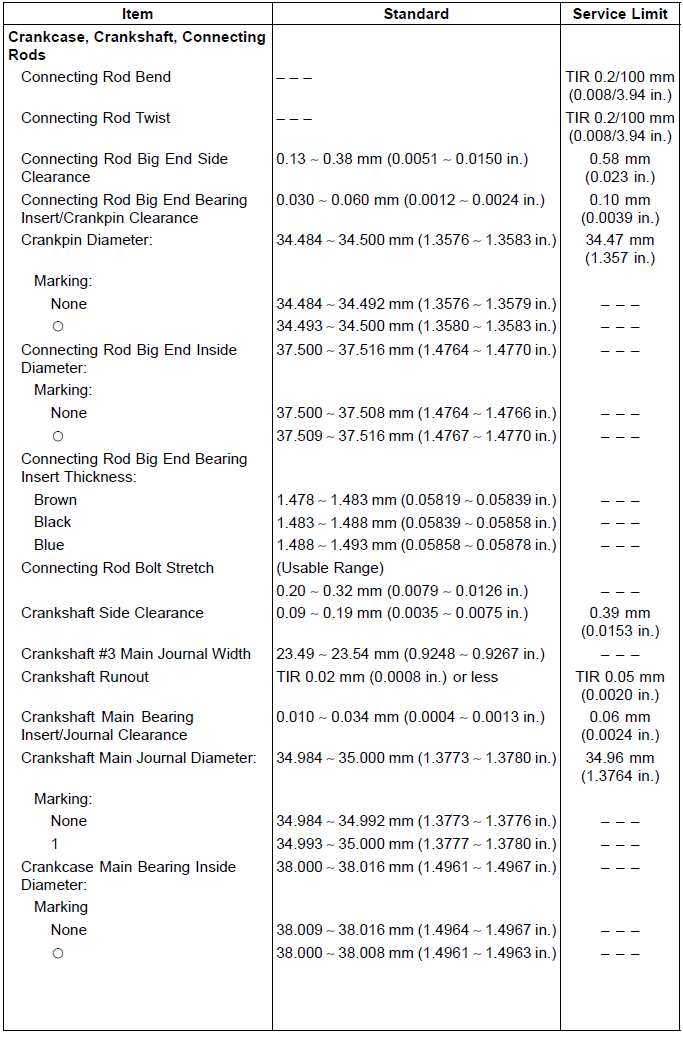

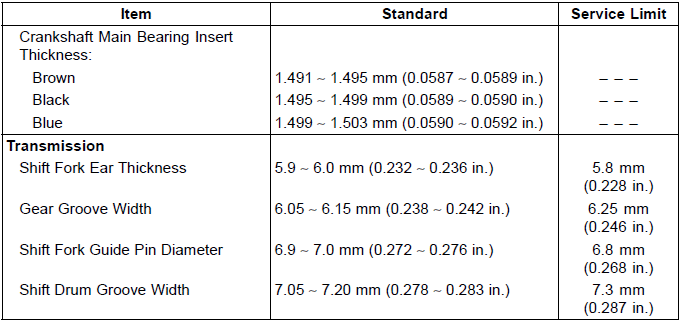

Specifications

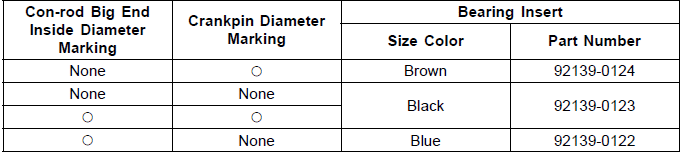

Connecting Rod Big End Bearing Insert Selection

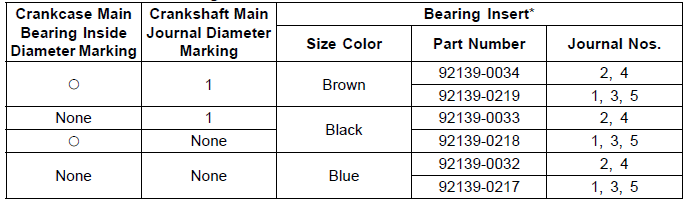

Crankshaft Main Bearing Insert Selection
*: The bearing inserts for Nos. 2 and 4 journals have an oil groove, respectively.
Special Tools and Sealants

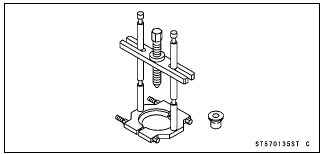

Bearing Puller: 57001-135

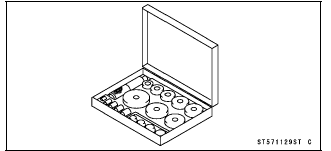

Bearing Driver Set: 57001-1129

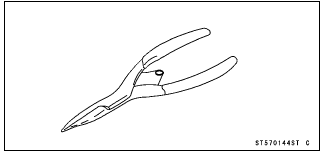

Outside Circlip Pliers: 57001-144

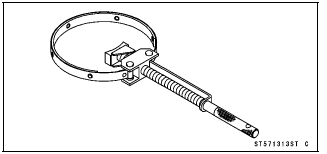

Flywheel Holder: 57001-1313

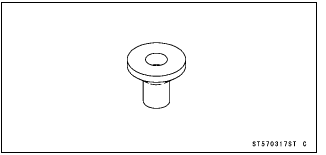

Bearing Puller Adapter: 57001-317

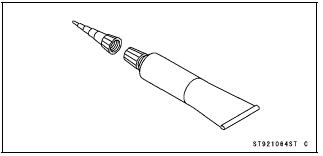

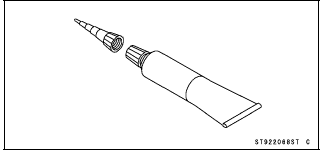

Liquid Gasket, TB1216B: 92104-1064

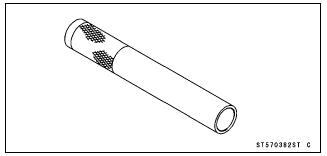

Bearing Driver,
32:
57001-382
Liquid Gasket, TB1207B: 92104-2068
