SUMMARY AND OPERATION

NOTE The description for right hand side is viewed from the driver The identification number (1) is located on the rear part of the frame below the right underside cover

Chassis number

The chassis number is located on the frame behind the cover (2).

Engine number

The engine number (3) is located on the front part the left crankcase.

Key

With the scooter you get two separate indefinite keys for:

• Ignition lock, storage box and tank cap.

Keep the spare key at a safety place.

OVERVIEW AND OPERATION

Right-hand side view

1. Storage box with tool kit
2. Spark plug
3. Engine oil filter cap
4. Battery box and fuse
5. Ignition and fork-column lock
6. Brake fluid container for front wheel brake
7. Handbrake lever for front brake

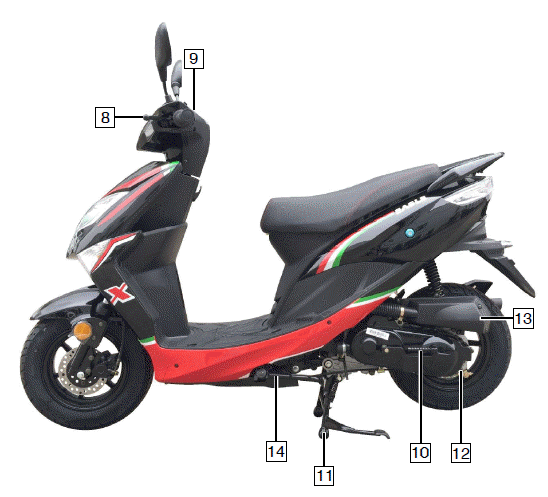

Left-hand side view

8. Handbrake lever for rear brake
9. Instrument
10. Kick starter
11. Parking stand
12. Transmission oil filler screw
13. Air filter
14. Side stand

Instrument

1. Speedometer - km/h/mph
2. Odometer - km
3. Fuel indicator -

Instrument lights

4. Left and right direction indicator - green

5. High beam indicator - blue

6. Malfunction Indicator Lamp - oranger

Handlebar instrument, left

1. Fixed grip
2. Handbrake lever for rear brake
3. Direction-indicator switch

Switch to left
Left indicator on

Switch to right
Right indicator on
Push button for switch off

4. Push-button: horn

5. High beam indicator

  high beam

low beam

Handlebar instrument, right

6. Handbrake lever for front brake
7. Throttle
8. Starter button

Ignition and fork-column lock

WARNING

While riding, do not switch the ignition off

NOTE

Keys

With the scooter you get two indefinite ignition keys. Keep the spare key at a safety place.

Key positions

NOTE

The key can be removed in positions and .

(1) Operating position

Ignition and all circuits activated.

(2) Ignition off

Fork column not locked (handlebars can be freely turned to the left or right).

(3) Fork column locked and ignition off

Turn the handlebar to the left as far as to the stop.

Push and turn the key to the left until it is in the LOCK position.

The fork column is now locked.
