Kawasaki Z1000SX - Service manual > Lower Fairing Removal

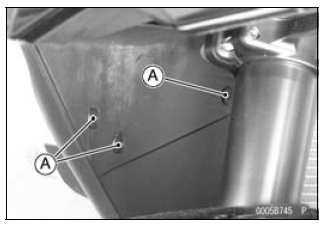

• Remove:
  Quick Rivets [A]

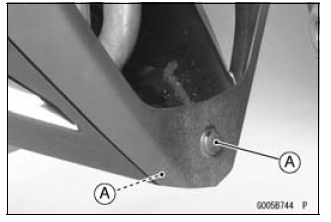

• Remove:
  Quick Rivets [A] (Both Sides)

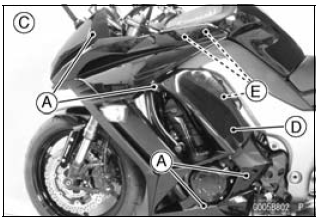

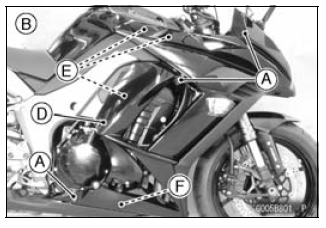

• Remove:
  Bolts [A]
  Right Side [B]
  Left Side [C]
• Pull out the lower fairing [D] outward to clear the projections [E].
• Pull out the lower fairing upward to clear the projection [F] (right side only).

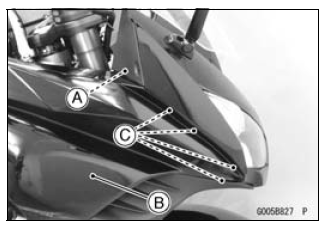

• Clear the projection [A] (Both Sides).
• Pull the lower fairing [B] rearward to clear the hook portions [C], and remove the lower fairing by moving it downward (Both Sides).

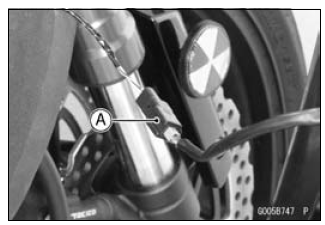

• Disconnect the turn signal light lead connector [A] (Both Sides).

Lower Fairing Installation

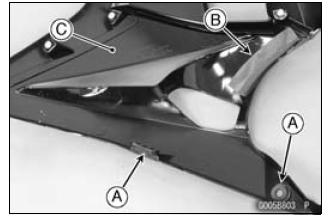

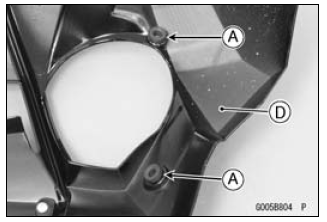

• Be sure to install the dampers [A] and pad [B] (right side only).

  Right Lower Fairing [C]
  Left Lower Fairing [D]

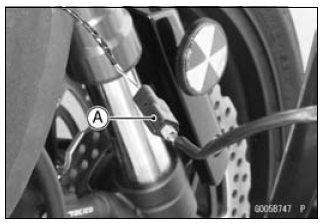

• Connect the turn signal light lead connector [A] (Both Sides).

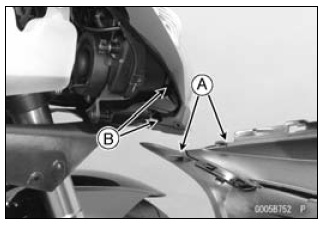

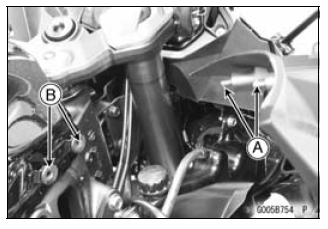

• Insert the hook portions [A] into the slits [B] on the upper fairing (Both Sides).

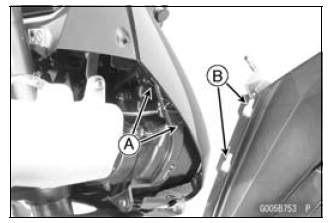

• Insert the hook portions [A] into the slits [B] on the lower fairing (Both Sides).

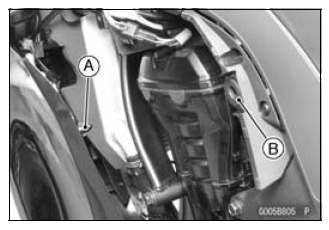

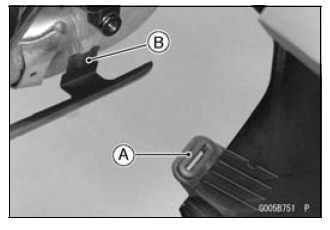

• Insert the stoppers [A] into the dampers [B] on the lower fairing (Both Sides).

• For left lower fairing installation, insert the stopper [A] into the damper [B] on the left lower side fairing.

• For right lower fairing installation, insert the damper [A] into the projection [B] on the rear lower fairing.
