Royal Enfield Interceptor 650 - Service manual > Magneto/Gear Position/Side Stand

Magneto/Gear Position/Side Stand Switch Couplers Connections

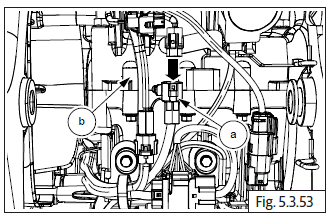

• Disconnect the gear position sensor (a) located on rear side of engine (b).

• Disconnect magneto sensor connector (a) located on rear side of engine (b).

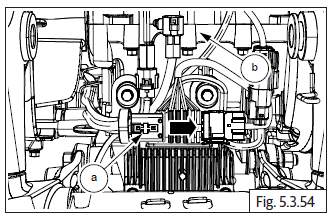

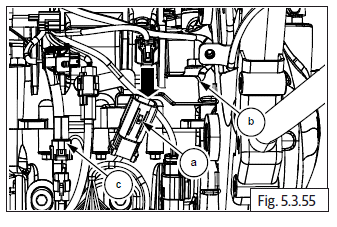

• Disconnect side stand switch connector (a) located on rear bottom of engine (b).
• Disconnect crank position sensor connector (c).

Starter Motor Connection

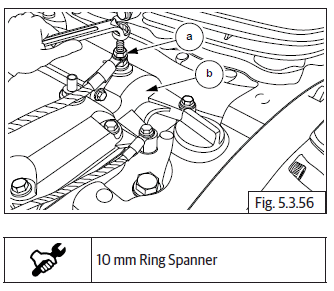

• Loosen and remove Hex nut (M6) (a) from starter motor (b) to disconnect positive (+) terminal.

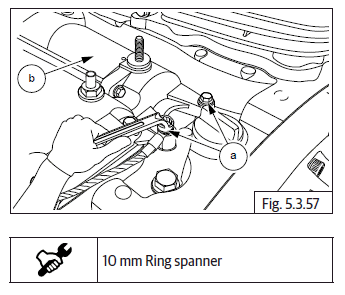

• Loosen and remove 2 Nos. Hex flange head bolt (M6) (a) to disconnect starter motor (b) negative (-) terminal.

Spark Plug Suppressor Caps on LH

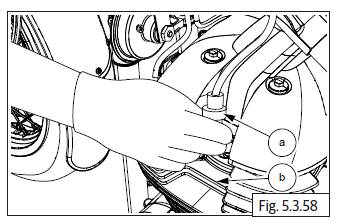

• Gently pull out/disconnect spark plug suppressor cap (a) from LH cylinder spark plug (b).

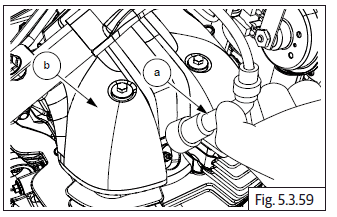

• Gently pull out/disconnect spark plug suppressor cap (a) from RH cylinder spark plug (b).

Breather Hose Connection

(From Breather Box to Air Filter Box)

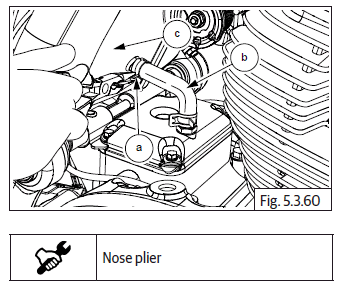

• Release the clamp (a) to disconnect breather hose (b) from air filter box (c).

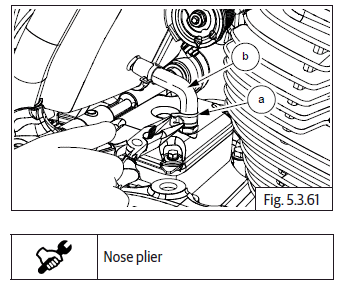

• Release clamp (a) to remove hose from breather box (b).

Gear Shift Linkage

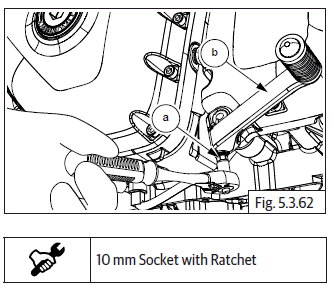

• Loosen Hex bolt (M6) (a) to remove gear lever (b) from gear shaft.

FD Sprocket Cover

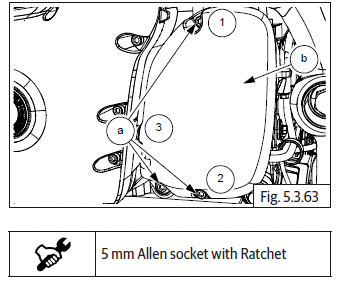

• Loosen and remove 3 Nos. Hex socket head screws (M6) (a) from FD sprocket cover (b) on the LH side of engine, in the order shown (1, 2 & 3).

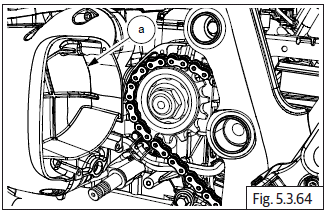

• Gently pull out FD sprocket cover (a).

Rear Wheel (Increasing chain slack)

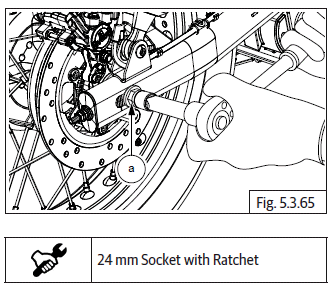

• Loosen rear wheel axle nut (M16) (a) to increase the chain slackness/tension.

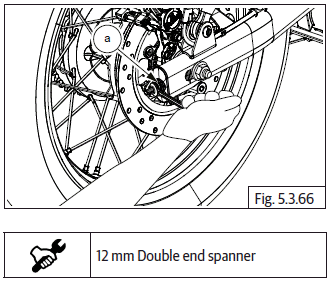

• Loosen chain adjuster lock nut (M8) (a) on LH and RH.

Remove Rear Chain from FD Sprocket

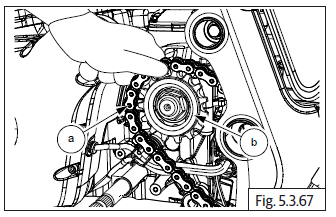

• Gently remove chain (a) from FD sprocket (b).

Gear Position Indicator Sensor

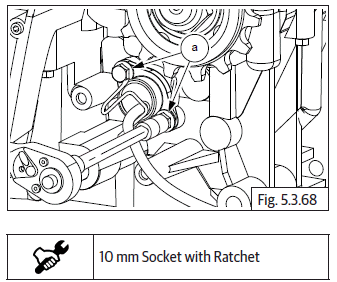

• Loosen and remove 2 Nos. Hex flange head bolts (M6) (a).

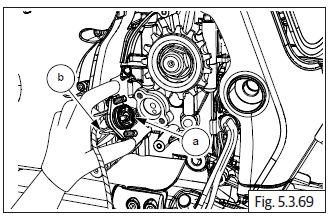

• Remove gear position sensor (a) along with the bracket (b).
