Lexmoto Echo - Owner's Manual > Check and change

Notes on Maintenance / Cleaning the Air Filter/Spark Plug / Check and change

CAUTION

Check or change the spark plug only when the engine is cold.

Check and change

  • Remove four nuts (1) with washers from the storage.
  • Take off the storage (2) with the seat.
  • Pull the spark plug connector (3).
  • Unscrew the spark plug with the spark wrench from the on-bord toolkit.
  • Check the electrode gap (0.6-0.7mm) replace the spark plug if it is severely burnt away.
  • Use a new spark plug and tighten up.

Check and change

  • Screw in the spark plug by hand and then tighten up with the spark wrench.

Torque 11 Nm.

  • Plug in the spark plug connector (3).

Checking the fuse

Checking the fuse

CAUTION

Never install a fuse with a larger rating, since this could destroy the entire electrical system.

The fuse is inside the storage.

Checking the fuse

  • Turn off the ignition.
  • Remove the screw (1) and open the inspection cover (2).

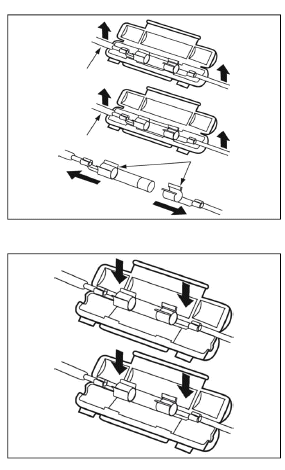

  • Open the fuse case (3) and remove the fuse.
  • A faulty or blown fuse must be replaced by a new one with 15 A.
  • Check the fuse for correct contact. Loose fuse will blow.

Installation takes place in reverse order to disassembly.

Checking the fuse
