Royal Enfield Interceptor 650 - Service manual > Clutch Cable on Clutch Cover

• Disconnect clutch cable assembly (a) from clutch cover (b). Refer clutch cable dismantling procedure.

Clutch Actuating Lever Assembly

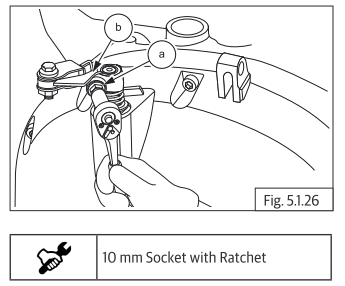

• Loosen and remove Hex head bolt (M6) (a) from clutch actuating lever assembly (b).

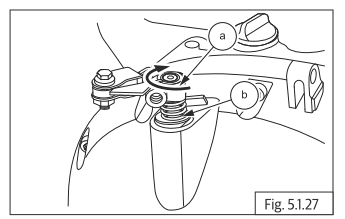

• Rotate clutch actuating lever (a) in clockwise direction to release tension in spring (b).

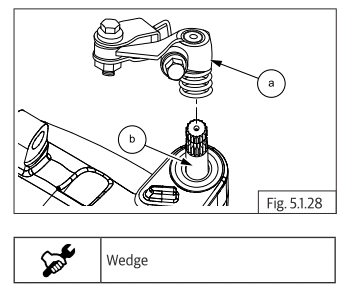

• Remove clutch actuating lever (a) from clutch shaft (b) on cover.

NOTE

• Use a suitable wedge to slightly expand the slot in the clutch actuating arm and gently lift from the shaft.

Clutch Cover

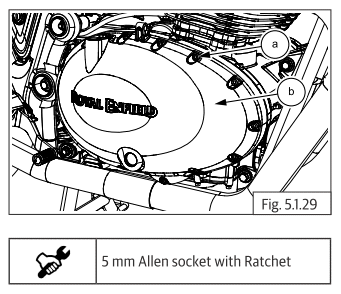

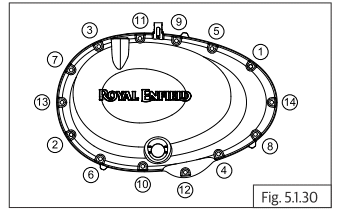

• Loosen and remove 14 Nos. Hex socket screws (M6) (a) in a crisscross pattern to remove clutch cover (b) from motorcycle RH.

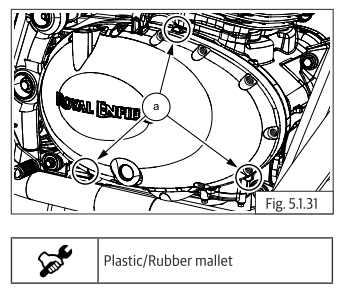

• If the cover is jammed in the engine, gently tap on the tabs (a) provided on the cover using a plastic/ rubber mallet.

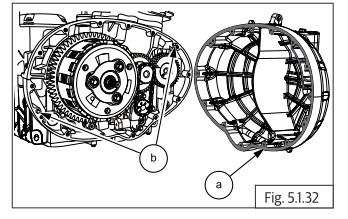

• Remove gasket (a) and dowel pins (b) from clutch cover/engine.

CAUTION Do not use a sharp tool to scrap the gasket material from the joint faces.

If required scrap only with a soft and blunt tool.

Clutch Actuating Shaft

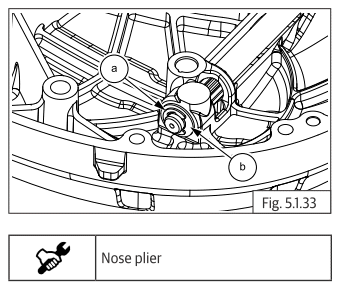

• Gently remove the E clip (a) and washer (b) from the bottom of the clutch actuating shaft inside clutch cover.

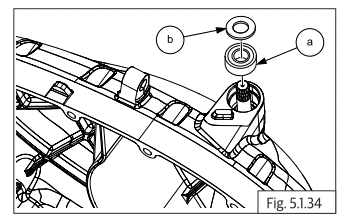

• Remove oil seal (a) along with washer (b) from outer clutch case.

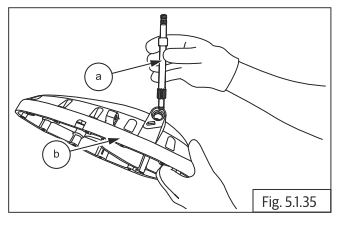

• Gently pull out clutch actuating shaft (a) from clutch cover (b).

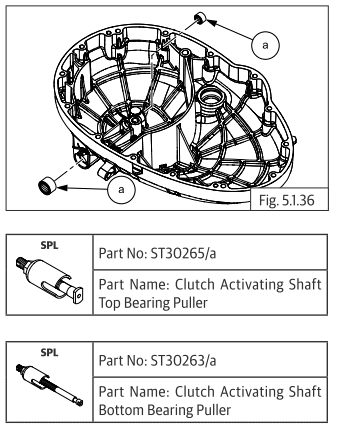

• Remove needle roller bearings (a) from clutch cover with special tool.
