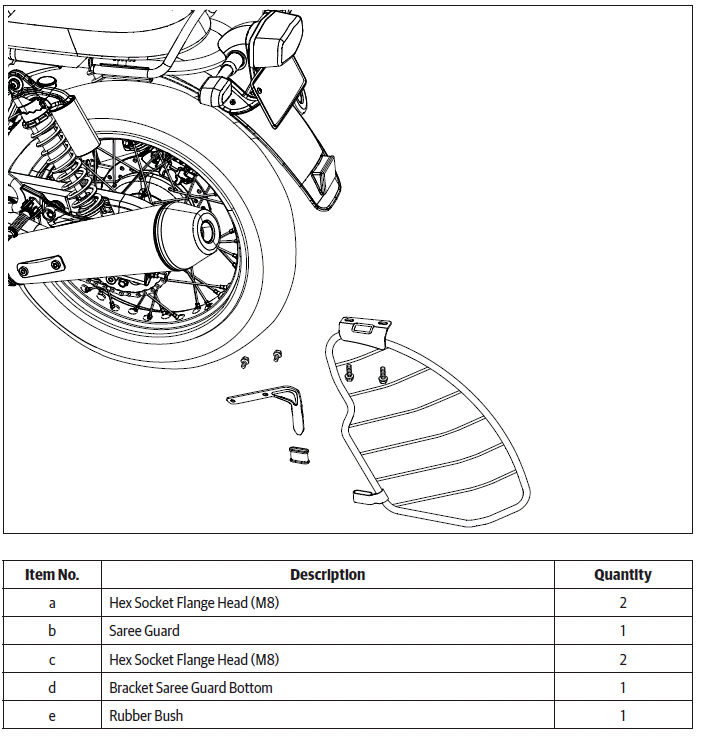

Saree Guard (For Indian Market Only)

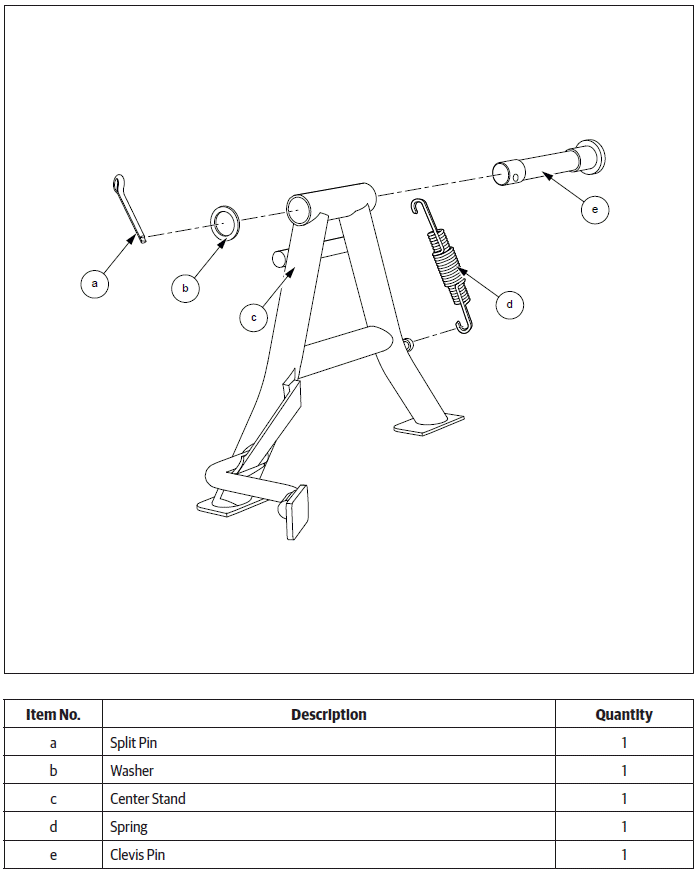

Center Stand

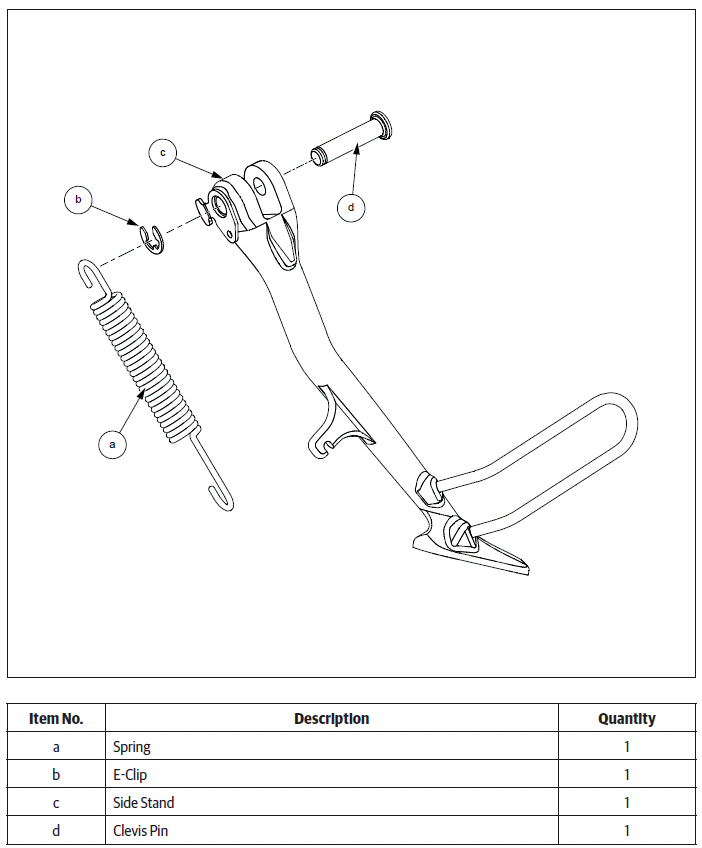

Side Stand

Footrests/Stands/Saree Guard

CAUTION Ensure the motorcycle is upright on a firm and flat surface.

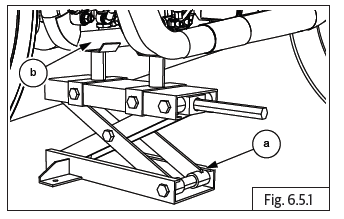

• Locate a scissor jack (a) under the cradle frame (b) and lift motorcycle such that the front wheel is off the ground.

Dismantling

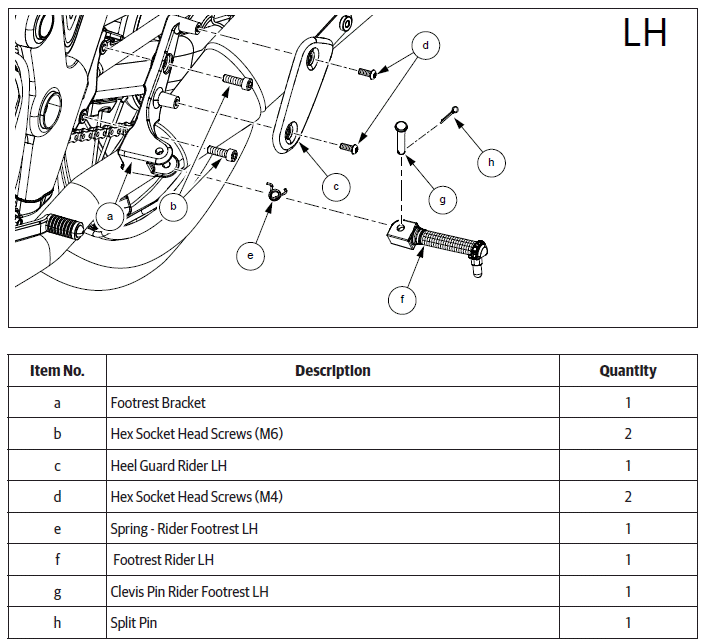

Footrests LH and RH - Rider

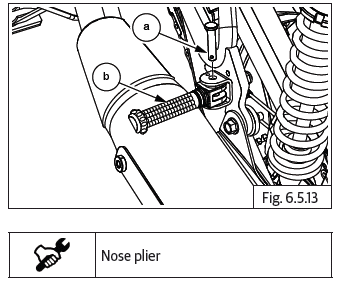

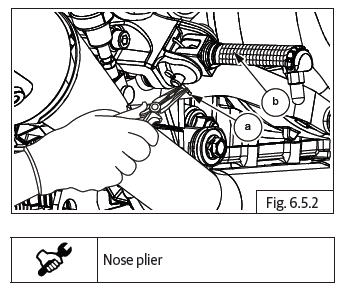

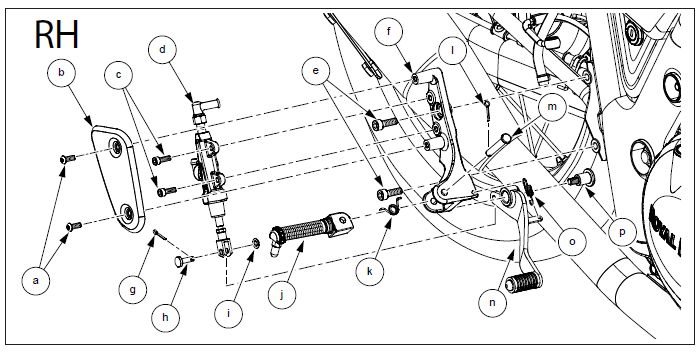

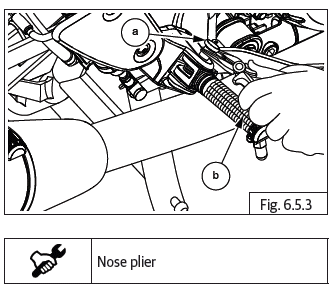

• Straighten and remove split pin (a) from clevis pin bottom on rider footrest RH (b).

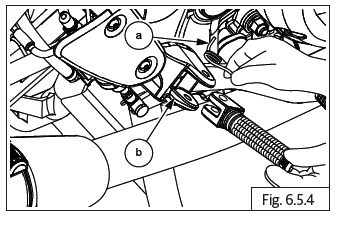

• Gently pull out clevis pin (a) from footrest housing top, duly supporting footrest (b).

CAUTION Spring is loaded. Support footrest while removing/reassembly.

• Remove footrest with spring (a) from the housing (b).

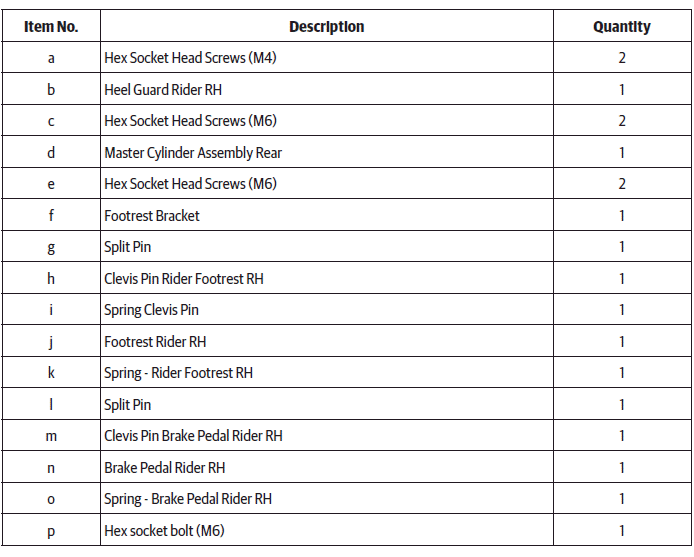

Footrest Bracket RH - Rider

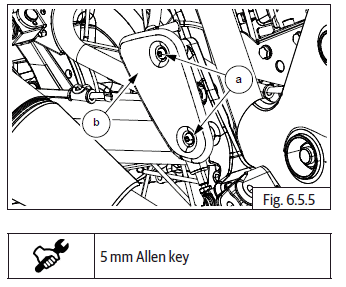

• Loosen and remove 2 Nos. Hex socket head screws (M6) (a) from Heel guard RH (b).

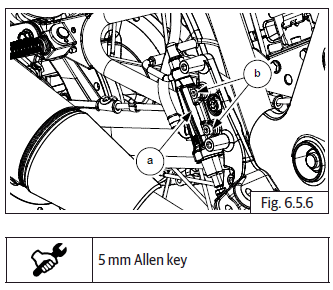

• Loosen and remove 2 Nos. Hex socket head screws (M6) (b) holding master cylinder (a) on footrest bracket.

• Support master cylinder carefully and release brake pedal spring (a) from footrest bracket (b).

• Loosen and remove 2 Nos. Hex socket head screws (M8) (a) holding footrest bracket to frame, support footrest bracket suitably to loosen brake pedal mounting.

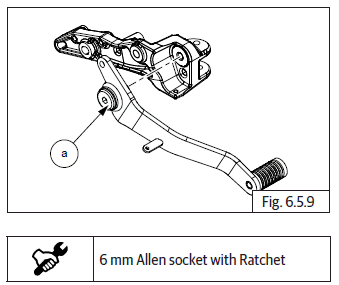

• Loosen and remove Hex socket bolt (M8) (a) from inner side of bracket and remove brake pedal.

Footrest Bracket LH - Rider

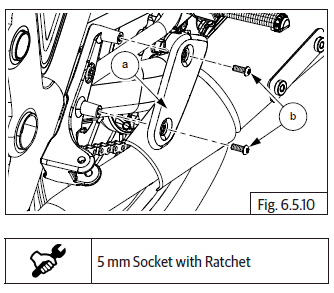

• Loosen and remove 2 Nos. Hex socket head screws (M6) (a) from heel guard LH (b).

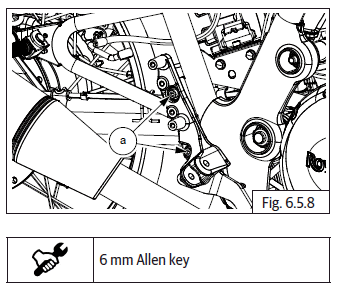

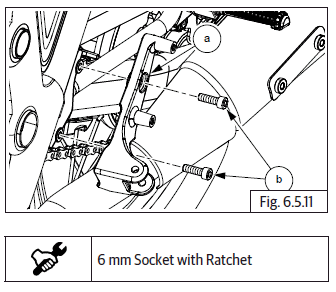

• Loosen and remove 2 Nos. Hex socket head screws (M8) (a) on footrest bracket (b).

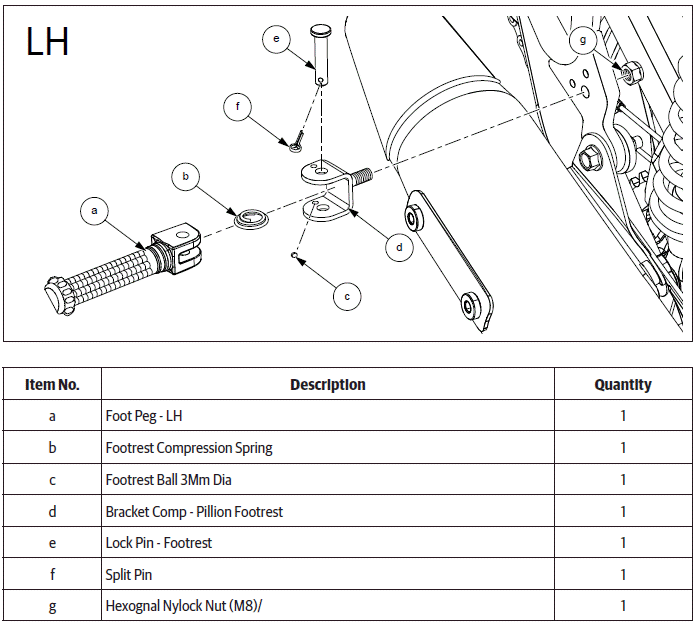

Footrests LH and RH - Pillion

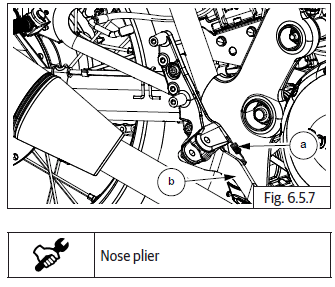

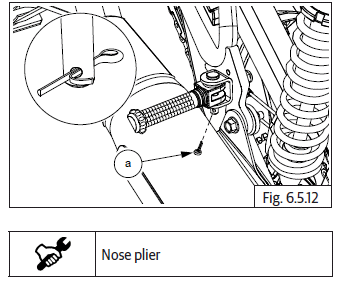

• Straighten and remove split pin (a) fixed into clevis pin bottom.

• Gently pull out clevis pin (a) from footrest housing top, duly supporting footrest (b).

CAUTION Ball and spring are loaded. Support footrest while removing/reassembly.

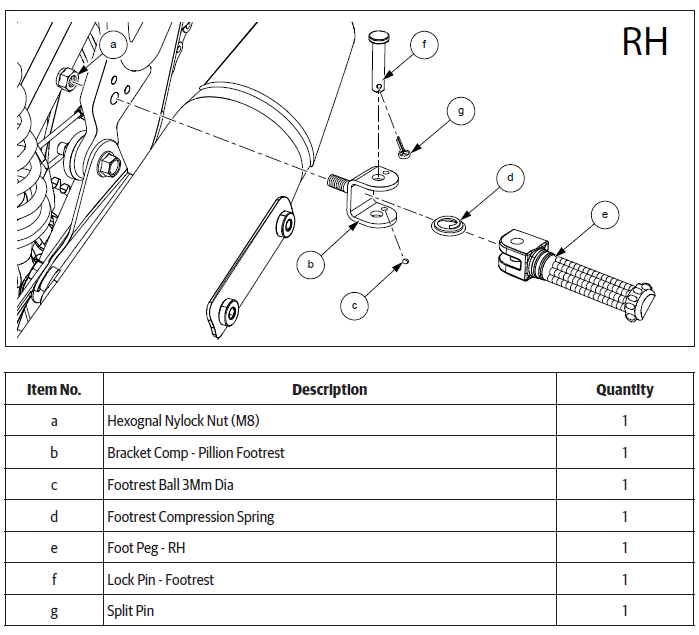

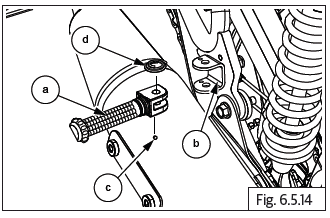

• Remove footrest (a) from mounting bracket (b) carefully along with ball (c) and spring (d).
