Honda PCX125 - Owner's Manual > Rear Brake Lock

Be sure the rear brake is applied while starting and warming up the engine.

The rear brake lock will not function if the rear brake is not adjusted properly.

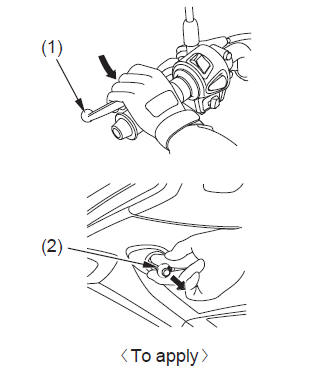

To Apply the Brake Lock

While Squeezing the rear brake lever (1), pull the brake lock knob (2).

LEFT FRONT

1. rear brake lever
2. brake lock knob

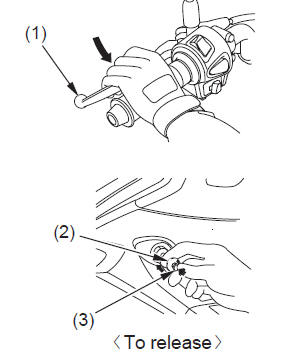

To Release the Brake Lock

Squeeze and hold the rear brake lever (1).

Press the brake lock knob (2) down while pushing in the center button (3).

Before riding, make sure that the rear brake is fully released so there is no drag on the rear wheel.

LEFT FRONT

1. rear brake lever
2. brake lock knob
3. center button

Fuel Lid and Seat Opener Switch

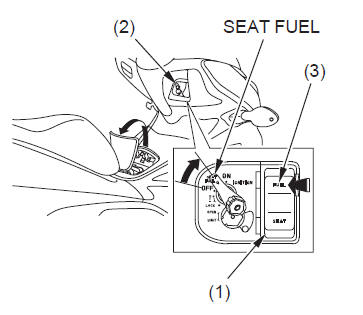

Fuel Lid

The fuel lid and seat opener switch (1) is located beside the ignition switch on the right side below the handlebar.

To open the fuel lid, insert the ignition key (2) and turn it to SEAT FUEL, then push the FUEL (3) side of the fuel lid and seat opener switch.

To lock the fuel lid, push down on it until it locks. Make sure the fuel lid is securely closed before riding.

BELOW HANDLEBAR

1. fuel lid and seat opener switch
2. ignition key
3. FUEL

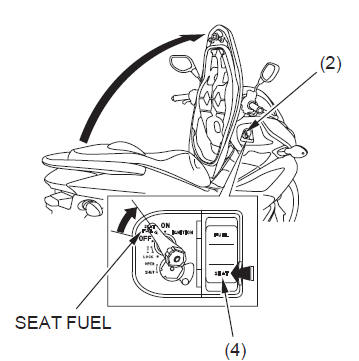

Seat

To open the seat, turn the handlebar pointed straight ahead. Insert the ignition key (2) and turn it to SEAT FUEL, then push the SEAT (4) side of the fuel lid and seat opener switch.

To lock the seat, lower and push down on it until it locks. Make sure the seat is securely closed before riding.

BELOW HANDLEBAR

2. ignition key

4. SEAT
