Kawasaki Z1000SX - Service manual > Clutch

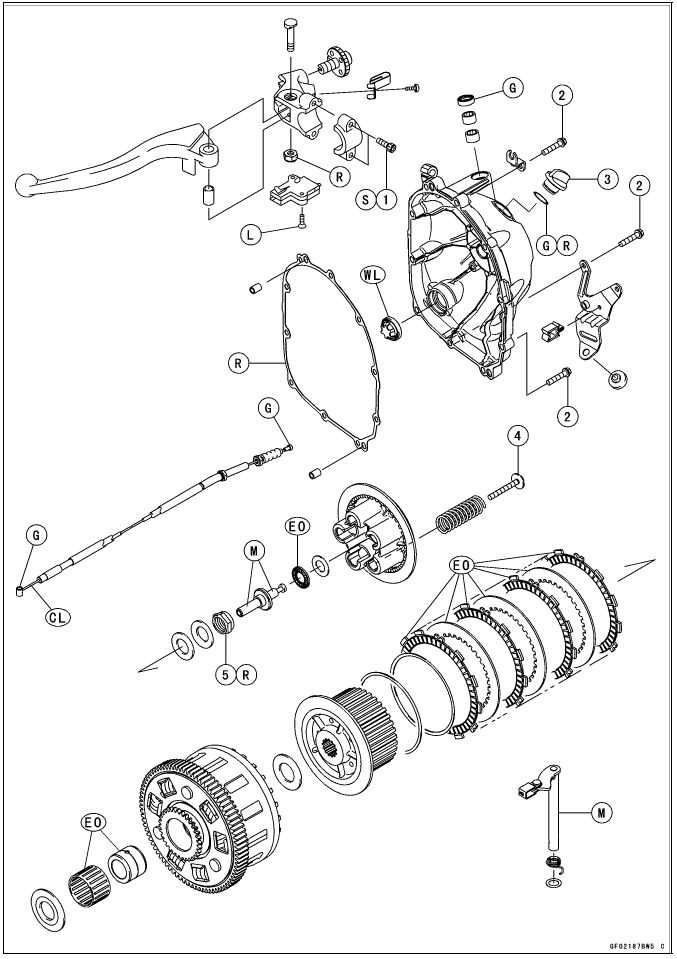

Exploded View
CL: Apply cable lubricant.
EO: Apply engine oil.
G: Apply grease.
L: Apply a non-permanent locking agent.
M: Apply molybdenum disulfide grease.
R: Replacement Parts
S: Follow the specified tightening sequence.
WL: Apply soap and water solution or rubber lubricant.

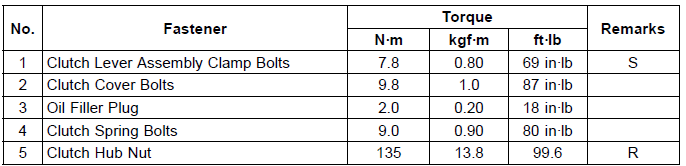

Specifications
Special Tool and Sealant

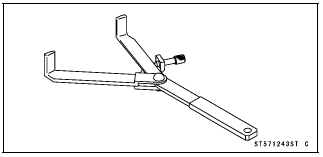

Clutch Holder: 57001-1243

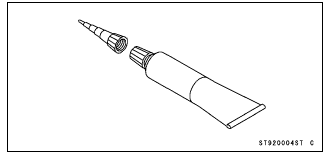

Liquid Gasket, TB1211F: 92104-0004
