Engine / Engine Dismantling

NOTE

  • Ensure the engine is properly clamped on the holding fixture on a worktable.
  • Ensure the engine is clean and free of any oil residue/dirt. Clean engine with recommended degreasing agents/solvents to remove oil residue/dirt.
  • Ensure worktable is clean and atmosphere is dust free.

Drain Plug

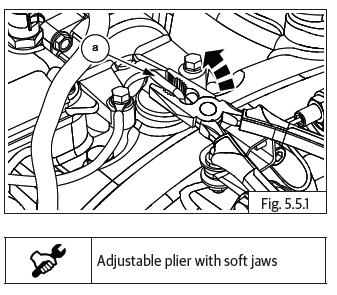

  • Loosen and remove oil filler cap (a) from the crankcase top on the RH side.
  • Use an adjustable plier with soft jaws to unscrew filler cap if necessary.

Engine Dismantling

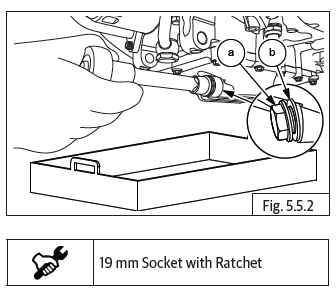

  • Place a tray under the engine, loosen and remove magnetic drain plug (M14) (a) along with washer (b) from the front end of the oil sump.
  • Allow the engine oil to drain out completely from the engine.

Engine Dismantling

WARNING Do not spill oil. Collect used oil in a seperate container and dispose it through authorized disposal agencies in your locality. Avoid skin OR body contact with the oil. Promptly wash affected area with soap and water.

NOTE

  • Ensure the engine oil is drained completely.
  • After draining the oil suitably cover the oil filler cap hole to prevent debris AND/OR small components falling into the crankcase.
